The specialized industrial high pressure cleaning drone for inaccessible and complex surfaces.
C10
ABZ INNOVATION
C10
GENERAL
INformation
Revolutionize your maintenance operations with the C5-certified ABZ Innovation C10 Cleaning drone. ABZ Innovation's C-Series drones are designed for safe and efficient industrial cleaning, making maintenance easier and more effective. Equipped with high-pressure cleaning systems, they can reach heights up to 60 meters (≈ 196.9 ft), eliminating the need for traditional methods like scaffolding or cranes. These drones deliver a powerful flow rate, effectively tackling dirt and grime, while radar technology ensures collision avoidance and operational safety.
*For quotes, demos, or product info, email sales@abzinnovation.com
Key
Benefits
11.6L/min
(≈ 3 gpm)
Flow rate
Up to 60 m
(197 feet)
working height
225 bar
(≈ 3263 PSI)
Pressure
17.3 kg
(≈ 38 lb)
Light weight
*The efficiency of cleaning may vary depending on the circumstances.
Where and When
the C10 is the best choice
Where
- High-rise buildings & glass facades
- Industrial facilities, silos & tanks
- Rooftops & solar panels
- Hard-to-reach areas
- Heritage buildings & monuments
- Complex architectural structures
When
- When scaffolding is cost-prohibitive
- High-risk areas unsafe for manual labor
- Rapid deployment is necessary
- Removing stubborn dirt, algae, and grime
- When heavy machinery cannot access the site
- Cost-efficient maintenance projects
*The US data presented are estimated values. For accurate specifications, please refer to the datasheet indicated for each product.
*The C5 category classification is valid only for the C10 drone as a complete system, including the spray lance (P/N:P001420.01) with the hose installed and provided by ABZ Innovation, and the 30 m (P/N: A001175.01) and 60 m (P/N: A001176.01) hoses supplied by ABZ Innovation.
Washing
Mode
The ABZ Innovation C10 offers versatile automated and manual operational modes for high-pressure facade cleaning, ensuring maximum efficiency and precision in demanding environments.
Vertical Mission
Ideal for high, narrow facades and vertical structures. The drone maintains precise wall distance using an upgraded radar system and follows a pre-set vertical cleaning loop.
- Fast and consistent vertical cleaning performance
- RTK positioning required for maximum stability
Horizontal Mission
Ideal for wide, low-rise buildings and long industrial walls. Rotates the automated mission path by 90° with a dedicated planning UI for fully autonomous horizontal coverage.
- 90-degree rotated autonomous flight path
- Dedicated horizontal planning UI for fast setup
- Optimal coverage for wide surfaces with fewer altitude changes
ADVANCED PRECISION &
SMART CONTROL
Angle Follow Mode
Automatically keeps the drone facing the wall during flight. This maintains a perpendicular spray angle for optimal pressure and uniform cleaning without manual yaw adjustments.
Upgraded Radar Measurement System
Features an upgraded, high-precision radar for real-time distance tracking relative to the facade, ensuring consistent cleaning and enhanced obstacle awareness on complex surfaces.
Upgraded Naviboard Flight Controller
Serves as the high-performance brain of the C10, seamlessly processing inputs from the radar, RTK positioning, and pilot commands. Delivers ultra-smooth flight dynamics, faster response times, and maximum reliability during complex maneuvers.
Redesigned RC
The remote controller is equipped with a larger, ultra-bright display for clear visibility in direct sunlight. Features a stronger signal connection and supports in-use charging to ensure uninterrupted operation during extended cleaning missions.
Why
Choose us
Certified Quality
C5, CE, ISO, FCC certified
Low-cost, high-efficiency
drone operation
Professional
Support & Aftersales
Use
cases
ABZ Innovation C10 Vertical Washing Operations The ABZ Innovation C10 drone is a highly specialized...
C10 – Pressure wash use case The problemThe subject is a building facade requiring exterior...
ABZ Innovation C10 – Washing Drone Use Case – Mossy Roof This document presents a use case that...
ABZ Innovation C10 – Cleaning Drone Use Case – Factory Building This document presents a use case...
Drone-Based Vertical Pressure Washing Analysis Overview This document outlines the operational...
Building Cleaning with ABZ Innovation Drones Maintaining cleanliness in industrial buildings...
Applications
ABZ Innovation C10
Nozzles
The C10 cleaning drone maximizes exterior cleaning efficiency with three specialized nozzles: the Foam Injector delivers adjustable dense foam, the eco-friendly eco!Booster provides a water-saving wide spray, and the 3-Way Nozzle allows easy switching between a 0° pencil jet, 25° flat spray, and 40° foaming spray.
Product
Catalog
GET YOUR
Accessories

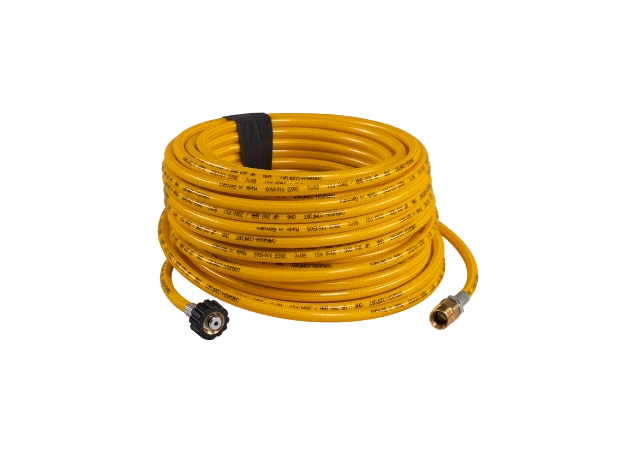

Hose 30-60 m

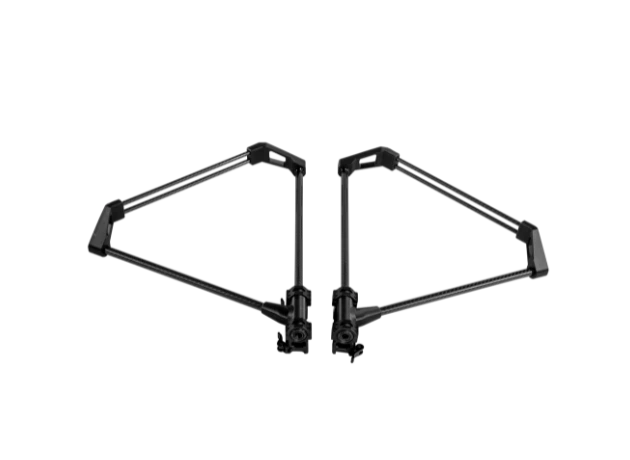

ABZ Prop Guard

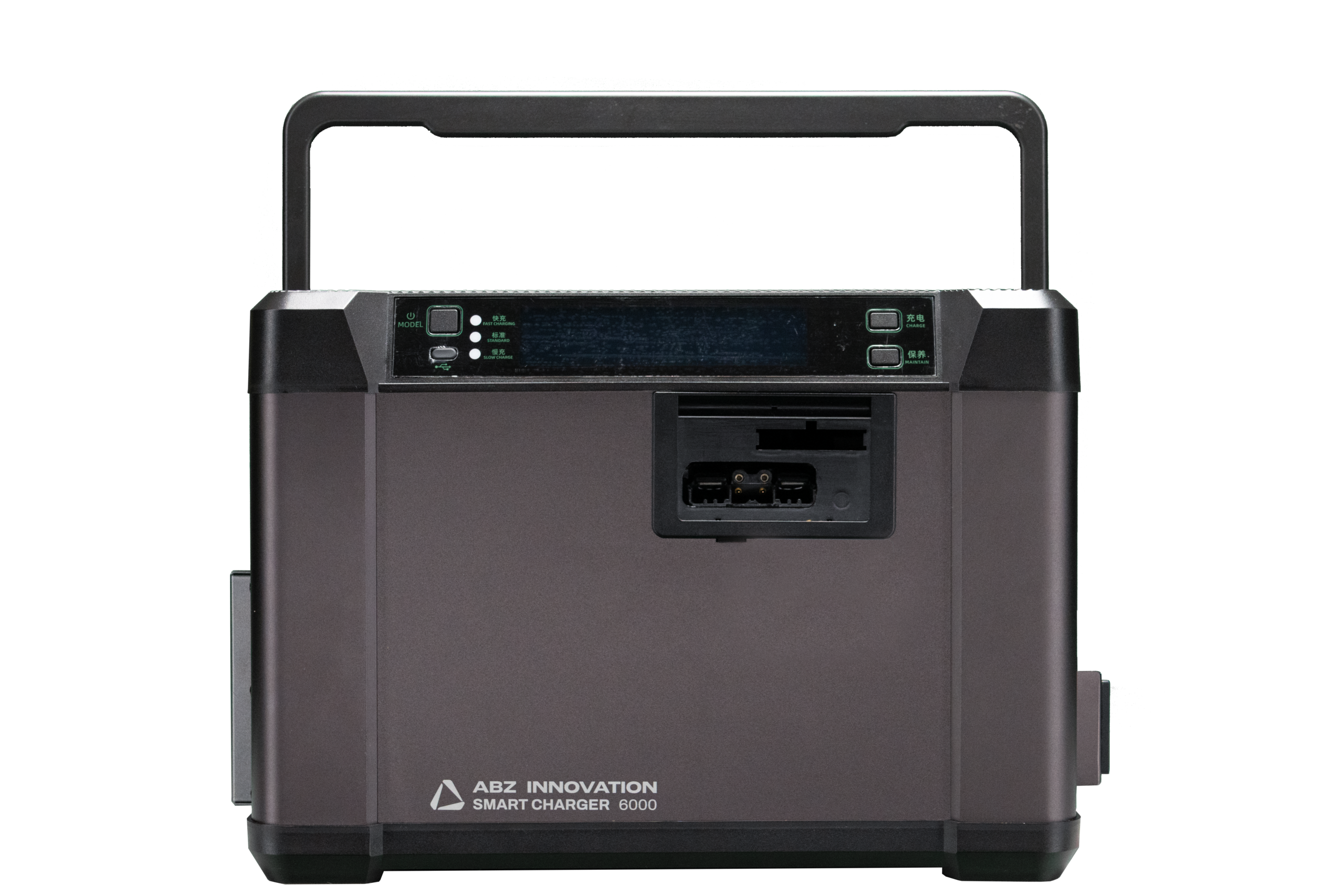

ABZ Smart Charger
ABZ Smart Battery 16

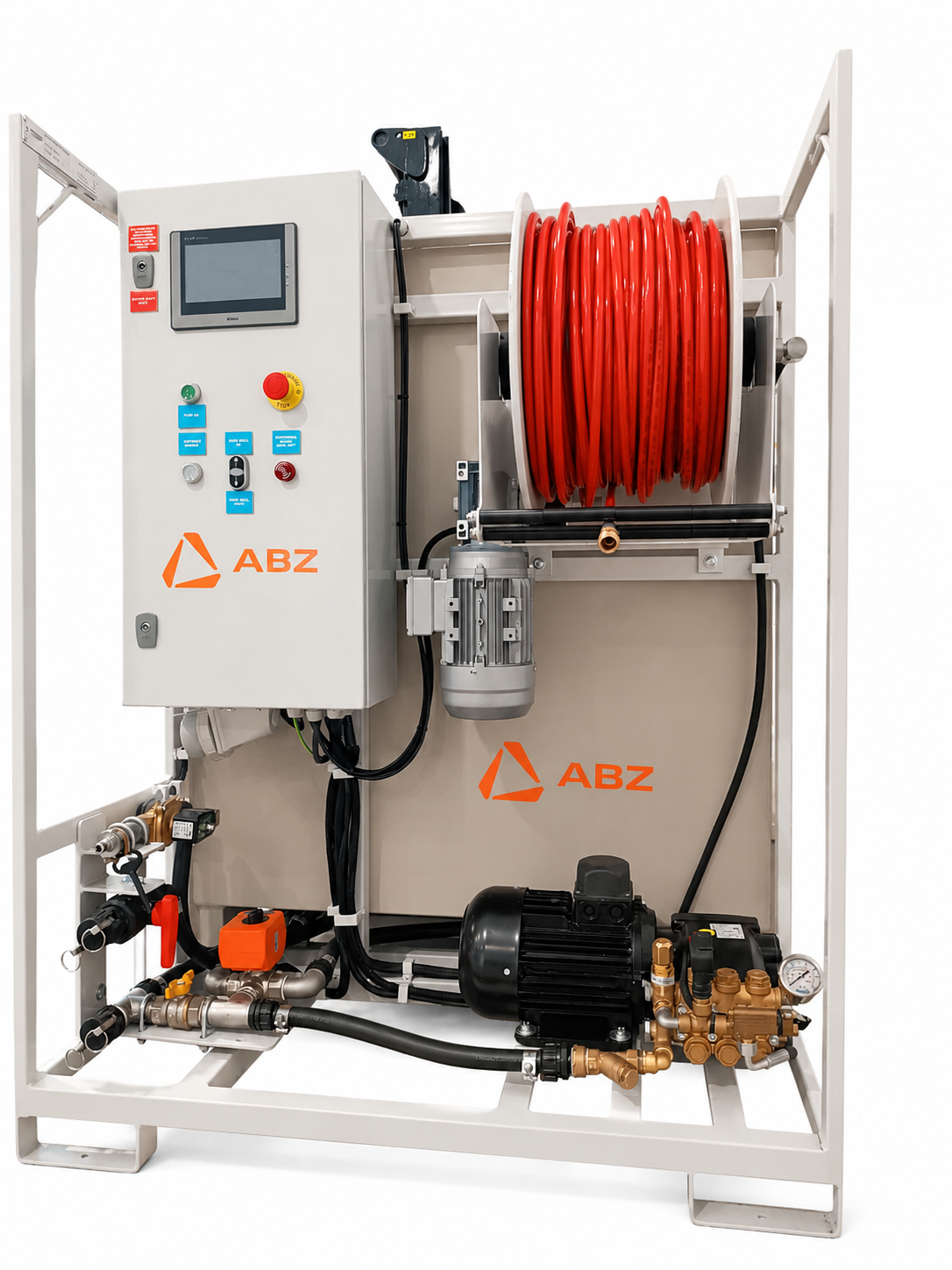

ABZ Clean Station
Kärcher Triple nozzle, 050, M18×1.5
Kärcher HDS 1000 DE High pressure cleaning system
Kärcher BP 4.500 Garden High pressure cleaning system
Kärcher HD 7/17 M Cage ST High-pressure washer
Kärcher HDS 10/21-4 M High pressure cleaning system
Kärcher HD 9/25 G Classic High pressure cleaning system
Kärcher Dirt blaster, 055/060, M18

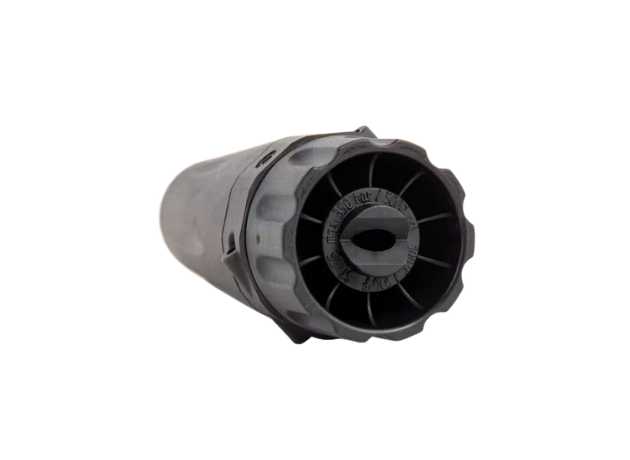

Kärcher R+M Suttner ST75 Foam Head (No 13)

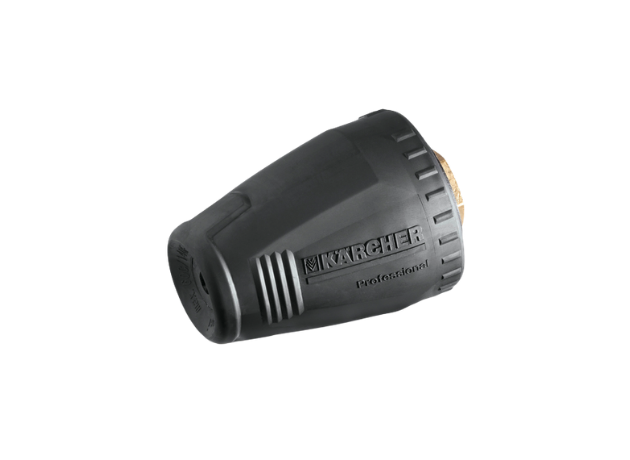

Kärcher Ceramic Dirt Blaster (Nozzle size 040)

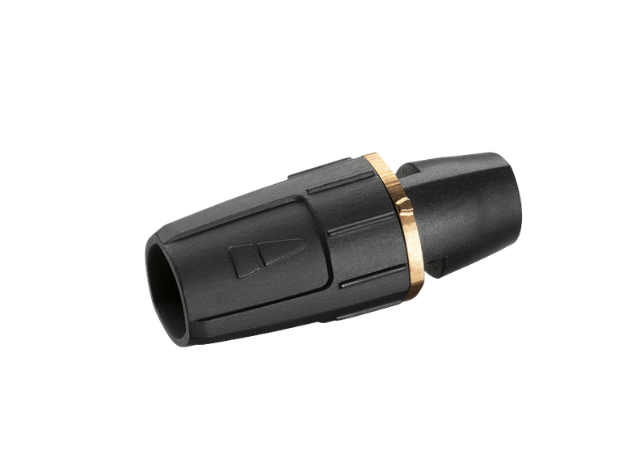

Kärcher Triple Nozzle, 036
Kärcher
Accessories
Discover professional Kärcher accessories designed specifically for ABZ cleaning drones – for maximum cleaning performance, reliability and ease of use in every operation.
Get in touch
Would you like to learn more about our solutions, request a quote, or have any questions about our demo? Simply fill out the form to send us an email. We will get back to you shortly.
