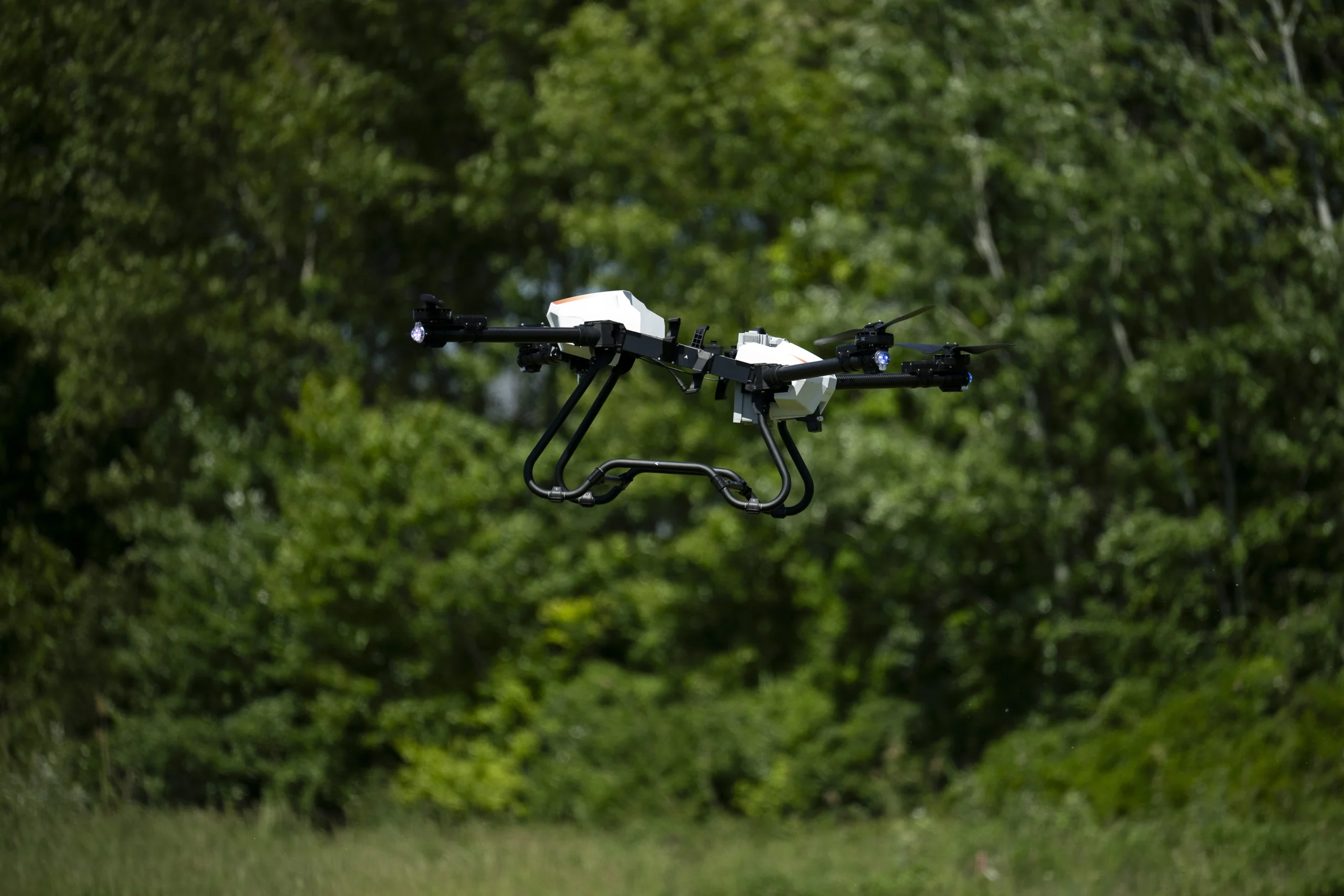

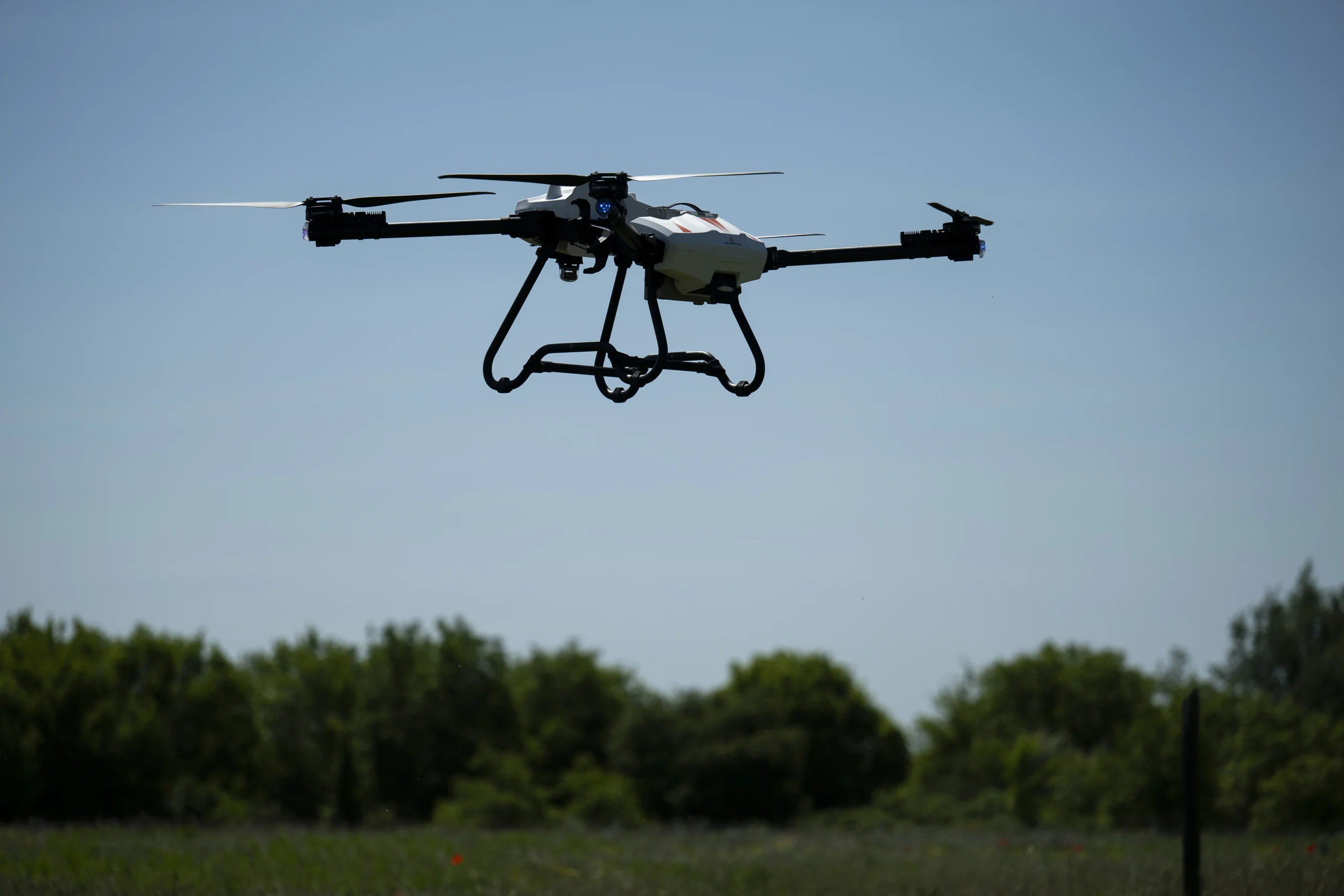

The M40 is a versatile, high-capacity drone engineered for advanced R&D and industrial applications. With a payload capacity of up to 40 kg (≈ 88 lbs), it is ideal for carrying heavy sensors, cameras, or delivery systems. Its open-source platform features extensive connectivity (I2C, UART, CAN, USB) and flexible power outputs, ensuring seamless integration with a wide range of tools.
Designed for professional use, the CE-certified M40 offers flight times between 15–40 minutes depending on the load. Its foldable frame ensures easy transport, making it the perfect robust solution for institutions and businesses requiring a reliable, customizable platform for complex tasks.
*For quotes, demos, or product info, email sales@abzinnovation.com
Unique
advantages
CAPACITY AND PERFORMANCE
- Payload: 40 kg (≈ 88 lb) max payload capacity
- Max. Take-off mass: 75 kg (≈ 165 lb)
- Light weight: 34.4 kg (≈ 76 lb) (total weight with battery)
- Max. level speed: 15 m/s (≈ 33.6 mph)
APPLICATION TECHNOLOGY
- Payload dimensions: 800 x 800 x 800 mm (≈ 31.5 x 31.5 x 31.5 in)
- Versatility: Modular payload attachability
- Connectivity: 4 x PWM & 6 x Relay signal outputs
- Power source: Configurable 0-55V output
NAVIGATION AND SAFETY
- Precision: Dual-RTK, centimeter-level accuracy (±10 cm / ≈ 3.9 in)
- Camera: FHD resolution, 0-180° vertical adjustment
- Signal range: ~8 km (≈ 5 mi) effective range
- Obstacle Avoidance: According to pregenerated shapefiles
OPERATIONS AND SECURITY
- Data Privacy: No data transmission to remote servers
- Battery charging: Min. 15-minute rapid charging
- Flexibility: Open source software code
- Flight planning: Area SHP and line SHP file compatibility
Key
Benefits
40 kg
(≈ 88 lb)
payload capacity
Versatile
High-load capacity
Open source platform
*The efficiency of spraying may vary depending on the circumstances.
Why
Choose us
EU-Certified Quality
CE & ISO
Low-cost, high-efficiency
drone operation
Professional
Support & Aftersales
Where and When
the L50 is the best choice
Where
- Research institutions & Universities
- Industrial facilities & construction sites
- Agricultural testing grounds
- Remote or hazardous areas
- Logistics & delivery centers
- Large-scale surveying zones
When
- Transporting heavy payloads (up to 40 kg / ≈ 88 lb)
- Integrating custom sensors or cameras (LiDAR, hyperspectral)
- Developing & testing open-source flight algorithms
- Conducting academic or industrial R&D projects
- When specific power outputs (12V, 5V, battery voltage) are needed
- Complex delivery or logistical missions
*The US data presented are estimated values. For accurate specifications, please refer to the datasheet indicated for each product.
